Connections

The recommendations below provide details on connecting devices to DJI Copilot.

Mobile device port

The mobile device port conforms to Micro-USB measurements. Use one of the three custom cables to connect a mobile device to DJI Copilot.

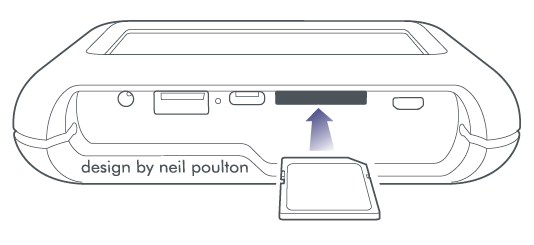

Secure Digital (SD) card port

Insert SD cards into the SD card slot. For microSD cards, use the included microSD to SD adapter.

USB Type A port

The USB Type A port allows you to connect a wide range of external devices to DJI Copilot. Connect the device to the Type A port on DJI Copilot using a USB cable recommended by the device manufacturer (not included).

Once you’ve powered the device and connected it to DJI Copilot, follow the Easy Copy prompts on the LCD, or use the Copilot BOSS app to copy and manage data on the device.

Recommendations for USB Type A connections

Drones, DSLR, point & shoot cameras, and video devices

Photographic equipment with USB ports can connect directly to DJI Copilot. Make certain to use a cable that supports the port on your device as it can differ by model. If you receive a USB error on the LCD, see the note above regarding powered devices.

iPhone, iPad and Android phone/tablet

While USB storage and photographic devices are the expected devices, DJI Copilot can also copy files stored on an iPhone, iPad or Android phone/tablet via the Type A port. Similar to storage devices connected to the Type A port, you can copy all the contents on your mobile device’s storage using Easy copy. However, performing an Easy copy also copies all system files on your mobile device. For precision copying, connect your mobile device to DJI Copilot via the dedicated tethered cable and use Copilot BOSS to choose only the files you want.

If you connect your mobile device to the Type A port and select an Easy copy, you may receive an error message on the LCD to check the USB connection. Both Android and iOS require permission to allow connected devices to access files. Many Android and all iOS devices have simple pop-up dialogs to give consent. If you do not see the pop-up on your Android device, navigate to the settings for USB connections to accept sharing files. The default for some Android devices is to allow a connected device with a battery to charge from your mobile device, which is not recommended.

Copies from Android and iOS mobile devices back up media files from the Camera Roll. A copy from the mobile device is not a backup of the device and should not be considered a full backup.

USB hub

While a USB hub can support multiple USB storage devices, it’s possible that DJI Copilot only recognizes one of them. Use the Copilot BOSS app to choose which devices to manage on the USB hub.

Computer - Not recommended

While a USB cable can connect a computer to DJI Copilot via the USB Type A port, it’s not recommended. Tasks such as copying files are not available to computers when connected to the Type A port. Computers that accept a charge via USB will rapidly drain DJI Copilot’s battery if it’s not connected to a power outlet. Computer connections should be made via DJI Copilot’s USB-C port.

USB-C port

DJI Copilot is a large capacity hard drive and hub when connected to a PC/Mac.

DJI Copilot’s USB-C port is meant for connection to a computer. Use computers with the following operating systems:

• macOS 10.12 (Sierra) and higher
• Windows 10 and higher

Connect your computer to DJI Copilot using one of the included cables:

Recommendations for USB-C connections

Copilot BOSS app and the USB-C connection

To use DJI Copilot as a hard drive for a PC/Mac, make sure DJI Copilot is in power saving mode before connecting it to a computer. Power-saving mode is initiated after two minutes of inactivity, or can be selected from the Copilot BOSS app settings. Make certain that a mobile device is not connected to the tethered cable. In this state, data transfers are managed by the computer—if you reconnect your mobile device to DJI Copilot, the Copilot BOSS app cannot read or write files on DJI Copilot because the computer is managing activities.

Refresh after disconnecting from computer

After DJI Copilot has been safely ejected from a computer and the cable is disconnected, you are prompted to refresh by pushing DJI Copilot’s action button. Since DJI Copilot’s system was in power-saving mode during the connection to the computer, it must wake up to update the status details for available storage and battery charge.

DJI Copilot hard drive format

While the default storage format used by DJI Copilot (exFAT) is universal for Mac and Windows, you have the potential for better transfer rates by changing it to one of the following:

• macOS: HFS+ (Journaled)
• Windows: NTFS

If you want to change the format, use the default utility for your operating system.

For further information, see the instructions for your operating system.

• macOS
• Windows

Partitioning DJI Copilot’s internal drive

In general, it’s recommended that you organize content on DJI Copilot’s internal drive using folders instead of partitions. However, if you choose to partition the internal drive, make sure that at least one volume is greater than 50% of the total 1.8TB storage capacity. DJI Copilot requires one volume that exceeds a minimum 900GB of storage capacity.

Hub - SD card and USB Type A port

When DJI Copilot is connected to a computer via the USB-C port, it serves as a hub—this means that SD cards and USB storage devices connected to DJI Copilot are available to your computer.

Mobile device connection via USB-C

While it’s possible to connect Android and iOS mobile devices to DJI Pilot’s USB-C port, such connections are non-standard and have not been tested. In addition, extended mobile device connections to the USB-C port can quickly drain the charge from your mobile device’s battery or DJI Copilot.

Connecting to PC/Mac during an Easy copy or Copilot BOSS app action

DJI Copilot can be connected to a PC/Mac while it’s performing an Easy copy or Copilot BOSS file management activities such as copying, moving, or deleting files. DJI Copilot’s drive becomes available to the PC/Mac when:

1. The action runs to completion.
2. DJI Copilot enters power-saving mode.

A single push is required to connect DJI Copilot to the PC/Mac.

Charging your DJI Copilot

DJI Copilot receives power via:

• The included power supply unit plugged into a power outlet.
• A USB-C connection to a computer or a power delivery charging device such as a USB-C power adapter or an external battery.

Power supply unit

Fully charging DJI Copilot with the included power supply may take several hours. Recharge time may be increased if DJI Copilot is in active use.

USB-C connection

DJI Copilot can receive a charge for its battery when connected via the USB-C port to a computer, charging device, or external battery.

• The charge rate depends on the current from the connected power source.
• It may take several hours to fully charge DJI Copilot.
• Power sources providing less than 1.5A may result in slow or negligible charging rates.

Charging your mobile devices from DJI Copilot

DJI Copilot can charge mobile devices connected to the mobile port or the USB Type A port.

Mobile port

Typically you’ll want to connect your mobile device to DJI Copilot’s mobile port using the included tethered cable, as this allows you to easily manage your data using the Copilot BOSS app. The mobile port delivers 1.5A for Lightning and USB-C connections and 900mA for Micro-USB connections. When charging iOS devices connected to the mobile port, make certain that DJI Copilot is receiving power from its power supply unit.

Charging compatible devices from DJI Copilot

Devices with batteries that charge via USB can receive up to 1.5A when connected to DJI Copilot’s USB Type A port. Micro-USB devices receive up to 900mA.
