Optional Formatting and Partitioning

LaCie Portable SSD is preformatted exFAT for compatibility with both Mac and Windows computers. If you use the drive with only one type of computer, you can optimize file copy performance by formatting the drive in the native file system for your operating system. There are two ways you can optimize performance:

Toolkit Optimize	Format your drive for optimal performance with just a few simple clicks.
Manual formatting	Use Disk Management (Windows) or Disk Utility (Mac) to format your drive in non-native formats.

About file system formats

NTFS—The native file system for Windows. macOS can read NTFS volumes but cannot natively write to them.

Mac OS Extended (HFS+)—An Apple file system optimized for macOS 10.12 and earlier. This file system remains the best option for external hard hard drives and is the only format compatible with Time Machine. Windows cannot natively read or write to HFS+ (journaled) volumes.

APFS (Apple File System)—An Apple file system optimized for solid state drives (SSDs) and flash-based storage systems. Note the following restrictions:

You cannot use an APFS-formatted disk as your Time Machine backup drive. Format LaCie Portable SSD to HFS+ if you intend to use it with Time Machine.
APFS is only supported on macOS 10.13 or later.

exFAT—Compatible with Mac and Windows. exFAT is not a journaled file system which means it can be more susceptible to data corruption when errors occur or the drive is not disconnected properly from the computer.

FAT32—Compatible with Mac and Windows. However, FAT32 is a legacy file system designed for low capacity hard drives and it is not recommended for modern hard drives or operating systems. A FAT32 partition can reach up to 32GB when formatted on a Windows PC.

How to choose the file system format

Use NTFS if:

…you connect the storage device to Windows computers, and you don’t need to allow a Mac to write to the disk.

Use HFS+ if:

…you connect the storage device to Mac computers, and you don’t need to allow a Windows computer to read or write to the disk. HFS+ is the only format compatible with Time Machine.

Use APFS if:

…you connect the storage device to Mac computers, and you don’t need to allow a Windows computer to read or write to the disk. Do not use APFS if you intend to use LaCie Portable SSD with Time Machine, or if your computer is not running macOS 10.13 or later.

Use exFAT if:

…you need to allow both Mac and Windows computers to read and write to the disk.

You can use FAT32 if:

…you connect the storage device to older Windows and Mac computers. FAT32 is not recommended for modern operating systems and computers.

Toolkit Optimize

Use Toolkit Optimize to format your drive for optimal performance with your operating system’s native file format. File transfer rates can be significantly better with the native format.

Formatting erases everything on the storage device. LaCie highly recommends that you back up all data on your storage device before performing the steps below. LaCie is not responsible for any data lost due to formatting, partitioning, or using a LaCie storage device.

Connect LaCie Portable SSD to your computer.
Open Toolkit.
On the Main Menu, click on the LaCie Portable SSD device.

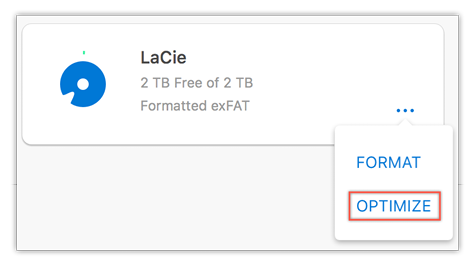

Click on the More menu icon for the volume you want to optimize. There are two options:

OPTIMIZE— Let Toolkit choose the optimal format for your computer system and configure the volume for you with just a few clicks.

FORMAT— Opens the disk management utility for your operating system, which you can use to manually format your drive. Use this option if you want to format the drive in non-native formats.

Click Optimize.
A notice appears asking you to confirm the format operation. Click Format.

Manual formatting

Use the steps below to manually format and partition a storage device.

Mac

macOS version 10.11 and later

Open the Finder and go to Applications > Utilities > Disk Utility.
In the sidebar to the left, select your LaCie Portable SSD.

macOS starting version 10.13—Make sure to select the disk and not just the volume. If you don’t see two entries listed in the sidebar, change the view in disk utility to show both the drive and the volume. The view button is in the upper left side of the Disk Utility window. Change the view to Show All Devices. This feature was introduced in macOS 10.13 and is not available in 10.11 or 10.12.

Select Erase.
A dialog box opens. Enter a name for the drive. This will be the name displayed when the drive mounts.
For Format, select OS X Extended (Journaled).
For Scheme, select GUID Partition Map.
Click Erase.
Disk Utility formats the drive. When it’s finished, click Done.

Windows

Make sure the storage device is connected to and mounted on the computer.
Go to Search and then type diskmgmt.msc. In the search results, double-click Disk Management.
From the list of storage devices in the middle of the Disk Management window, locate your LaCie device.
The partition must be available to format. If it is currently formatted, right click on the partition and then choose Delete.
To create a new partition, right click on the volume and select New Simple Volume. Follow the on-screen instructions when the New Simple Volume Wizard appears.
