Integrated Storage Servers

Exos AP 5U84 Storage Server

Advanced compute with cutting-edge storage in a single system.

exos-ap-5u84-pdp-row1-feature-content-product-image-desktop1

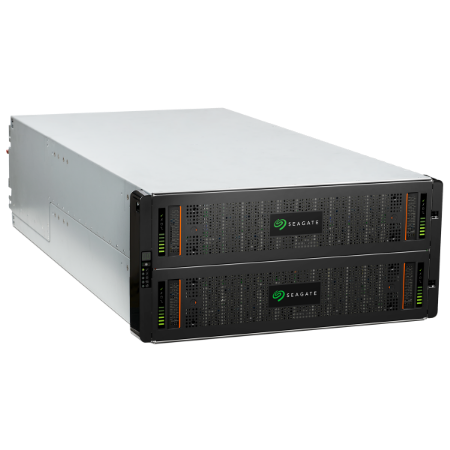

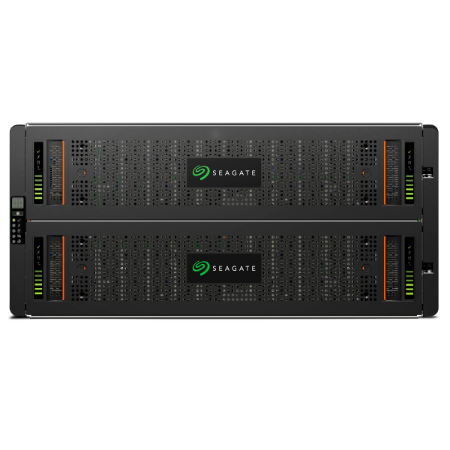

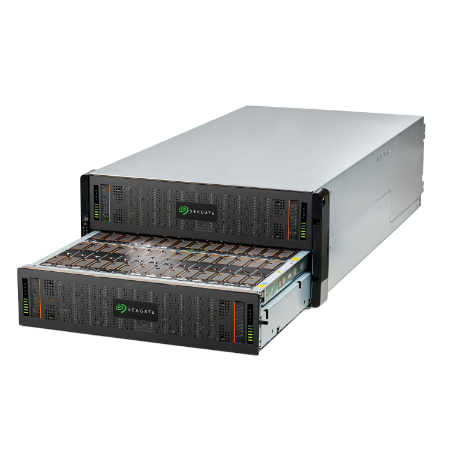

Exos AP 5U84 Storage Server

Exos AP 5U84

The Seagate® Exos® AP 5U84 storage server features 84 high-density drive slots along with superior controller attributes, features, and performance for space-efficient deployments.

Enclosure
  • 5U Rackmount form factor
  • 84 3.5” or 2.5” drive slots
  • Dual SBB I/O controller module slots
  • Dual power and fan modules

  • AMD SP3 7292P EPYC CPU 12 or 16 core
  • DDR-4 options up to 256GB
  • 256GB M.2 NVMe ​​​ boot SSD

  • 64GB/s (x16 Gen4 slot + x8 Gen4 OCP + x16 Gen3 ICL)
  • Onboard I/O, dual-port 10/25GbE
  • Management/Data: dual port 1GbE
  • SAS: 12G x4 mini-SAS HD external ports

We are sorry, that product is no longer in stock.

Exos AP 5U84

We are sorry, that product is no longer in stock.

Storage and Compute

Save space with up to 84 drives and dual controllers all in a 5U rackmount enclosure.

The ideal solution for small to midsize enterprise deployments in need of a high-capacity storage and compute platform for their software and networking requirements

Enterprise-Grade Platform

A performance-integrated storage server built upon our known and trusted storage systems.

Offering a rich set of enterprise features including modern CPU design, performance I/O options, and industry standard management.

Maximize High Density Potential in a 5U Form Factor

The ideal solution for customers who need an ultra dense chassis with high-end features—such as high availability at a reasonable cost.

The ideal solution for customers who need an high-dense chassis with high-end features—such as high availability at a reasonable cost.

Compare Systems

Controller CPU AMD SP3 7292P EPYC CPU (12, or 16 Core) 12 G SAS architecture
I/O Interface On each controller: Dual-port 10/25GbE I/O, and dual-port 1GbE onboard connections (management/data)
Drive Slots per Chassis (Capacity varies with drives used) 12 Drives
Management (2) GbE ports Redfish 2.0
Controller CPU AMD SP3 7292P EPYC CPU (12, or 16 Core) 12 G SAS architecture
I/O Interface On each controller: Dual-port 10/25GbE I/O, and dual-port 1GbE onboard connections (management/data)
Drive Slots per Chassis (Capacity varies with drives used) 24 Drives
Management (2) GbE ports Redfish 2.0
Controller CPU AMD SP3 7292P EPYC CPU (12, or 16 Core) 12 G SAS architecture
I/O Interface On each controller: Dual-port 10/25GbE I/O, and dual-port 1GbE onboard connections (management/data)
Drive Slots per Chassis (Capacity varies with drives used) 84 Drives
Management (2) GbE ports Redfish 2.0
